GUIDE TO THE APPLICATION OF THE REGULATION RESPECTING THE SUSTAINABLE DEVELOPMENT OF FORESTS IN THE DOMAIN OF THE STATE



Complete guide



Schedule 8

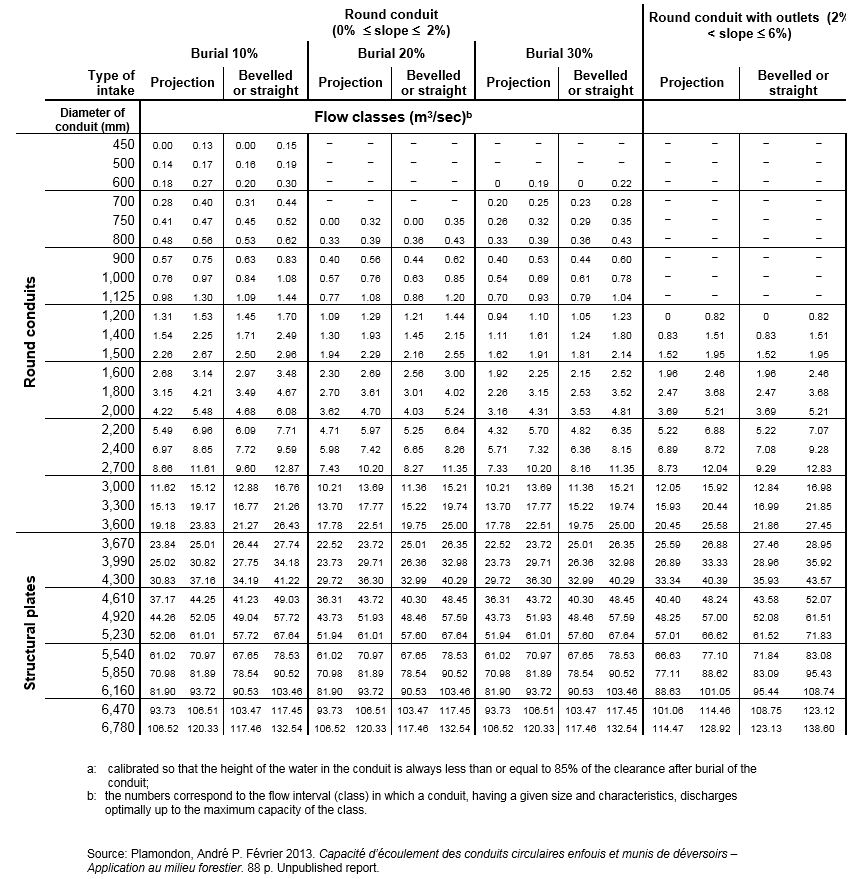

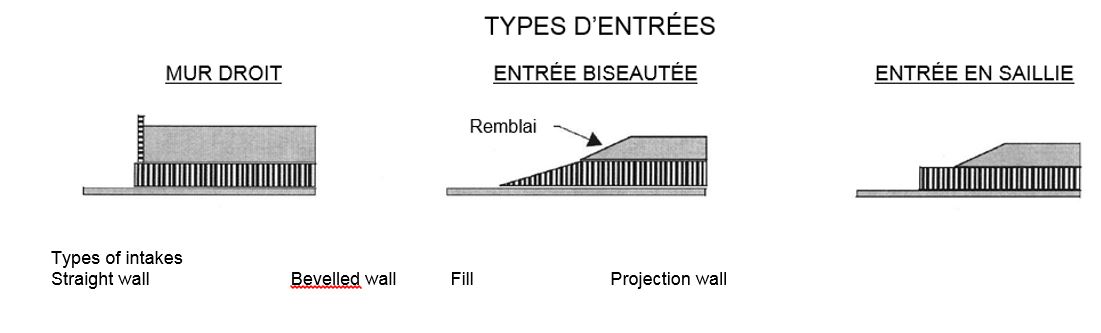

Diameter required for round conduits according to the peak flowa (Q10 Q1,20), the type of intake and the burial

1

Additional information

The decision tree below can be used to decide on the type of structure that must be installed to cross a watercourse.

Type of Structure to be Installed to Cross a Watercourse – Decision Tree

Diameter required for round conduits according to the peak flowa (Q10; Q1,20), the type of intake and the burial

Figure 1 Schedule 8
